Donaldson 1C224340 P-SRF II 05/25 Sterile Depth Filter – 0.2 μm, Borosilicate/PTFE, UF Push-In
Donaldson 1C224340 P-SRF II 05/25 Sterile Depth Filter – 0.2 μm, Borosilicate/PTFE, UF Push-In is backordered and will ship as soon as it is back in stock.
Datasheets
Datasheets
Delivery and Shipping
Delivery and Shipping
Please find our shipping information here.
Donaldson 1C224340 P-SRF II 05/25 Sterile Depth Filter – 0.2 μm, Bo...
Description
Description

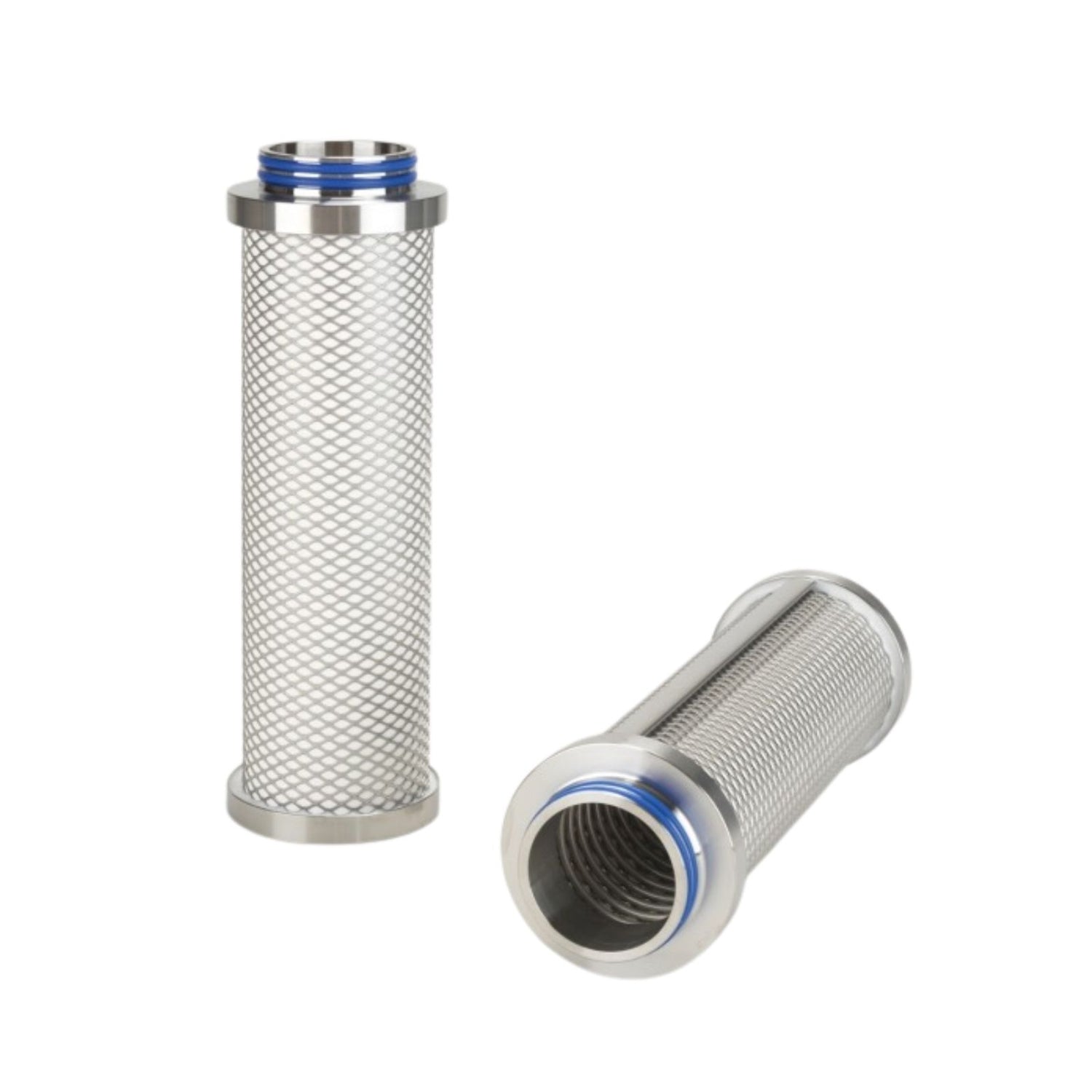

The Donaldson 1C224340 P‑SRF II 05/25 Sterile Depth Filter Element delivers exceptional sterile filtration performance with a compact and durable design, engineered for clean air and gas applications in food, beverage, and pharmaceutical environments.
-
Ultra‑Fine Sterile Filtration – Captures particles down to 0.2 microns to maintain high purity standards.
-
Compact & Resilient Construction – Measures 142 mm (5.59 in) in length and 62 mm (2.44 in) in diameter, featuring borosilicate media supported by PTFE.
-
High‑Temperature Capability – Rated to 150 °C (302 °F), suitable for demanding sterilization processes.
-
Premium Materials & Compliance – Stainless steel inner/outer cores and end caps, silicone O‑ring, compliant with EC 1935/2004 and FDA CFR Title 21 for safe use in regulated industries.Reliable UF Push‑In Connection – Ensures easy installation and secure integration in standard filtration setups.
Attributes
| Connection Type | UF Push-In Connection |
| Element Size | Size 05/25 |
| Media Type | Borosilicate with PTFE Support |
| Maximum Operating Temperature | 302 °F (150 °C) |
| Efficiency Sterile | 0.2 micron |
| Diameter | 2.44 inch (62 mm) |
| Length | 5.59 inch (142 mm) |
| Materials According to EC1935 2004 | Yes |
| Materials According to FDA CFR Title-21 | Yes |
| End Cap Material | 1.4301 / 304 Stainless Steel |
| Element O-Ring Material | Silicone |
| Inner Core Material | 1.4301 / 304 Stainless Steel |
| Outer Core Material | 1.4301 / 304 Stainless Steel |
Packaged Dimensions
| Packaged Length | 6.30 inch (16.002 cm) |
| Packaged Width | 2.76 inch (7.010 cm) |
| Packaged Height | 2.76 inch (7.010 cm) |
| Packaged Weight | 0.93 lb (0.420 kg) |
| Packaged Volume | 0.03 ft3 (0.001 m3) |
Other Information
| NMFC Code | 069100-13 |
| UNSPSC Code | 40161505 |
