Heavy Duty Duraflow Dairy Nozzle

Technical Specifications

• Operating Pressure Range: 65-85 PSI typical

• Maximum Pressure Rating: 150 PSI

• Maximum Temperature Rating: 200°F (93°C)

• Flow Rate: Varies depending on nozzle tip selection

• Construction: Stainless steel

• Spray Tip: 90 degree direct-on spray tip

• Filter: Includes 50 mesh filter

• Available Colors:

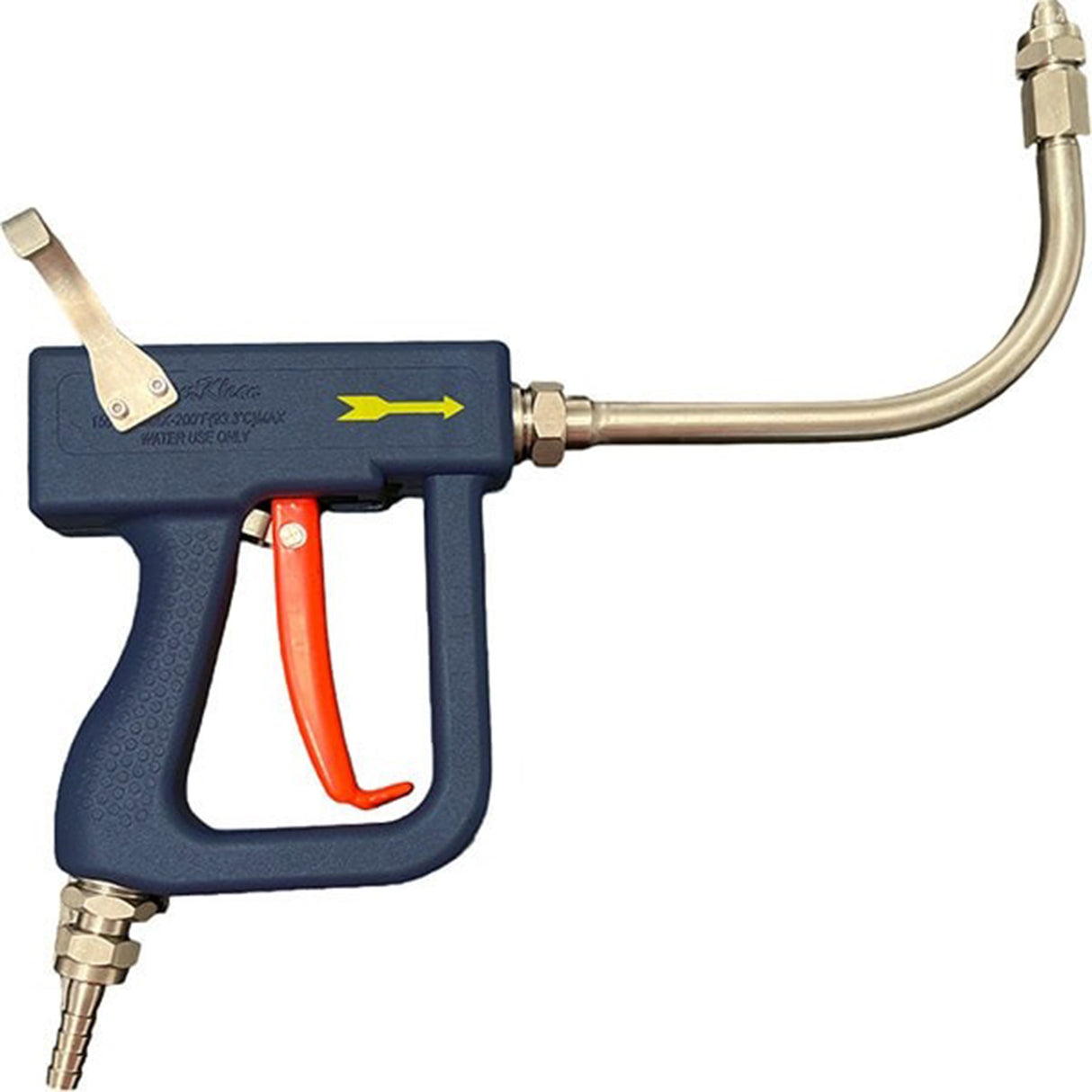

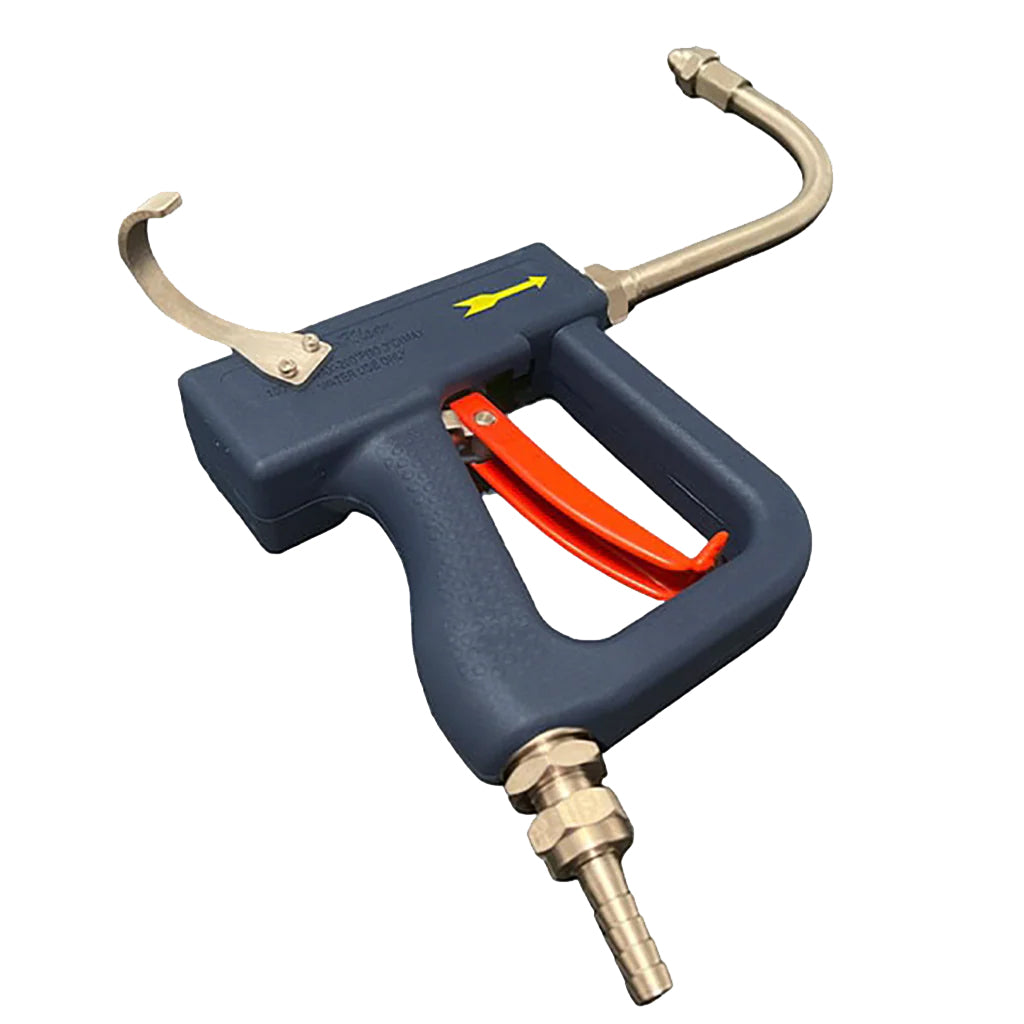

  Dark Blue: DH150D-DB

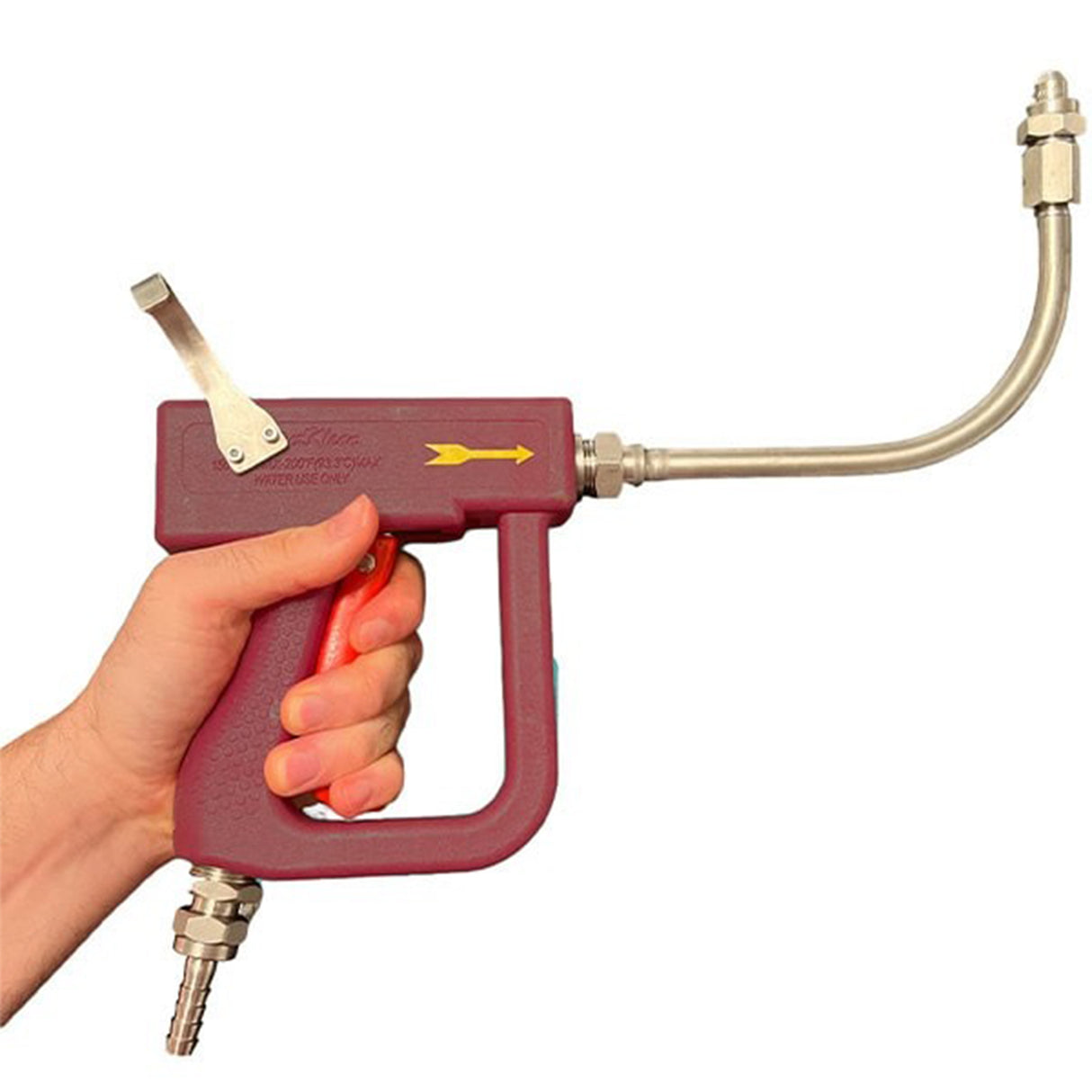

  Red: DH150D-R

• Available Adapter Options:
  1/4" hose barb
  3/8" hose barb

The Heavy Duty DuraFlow Dairy Nozzle is designed primarily for dairy parlor use, especially where accurate, repeatable chemical application is important.

Common applications include:

• Pre-dip teat spraying

• Post-dip teat spraying

• Milking parlor sanitation routines

• Targeted equipment rinsing

• General dairy washdown tasks

• Chemical application where a durable stainless steel nozzle is preferred


Its precise spray pattern and ergonomic design make it especially well suited for dairy operations focused on efficiency, herd health, and reduced chemical waste.

The Heavy Duty DuraFlow Dairy Nozzle was developed to meet the real-world demands of modern milking parlors. Built from durable stainless steel, it offers a longer-lasting alternative to plastic sprayers and is designed to stand up to repeated use in wet, chemical-heavy environments.

This nozzle is available in dark blue and red, making it easy to assign one color for pre-dip and the other for post-dip protocols. The 90 degree spray tip provides a comfortable, natural application angle for operators while helping direct spray exactly where it is needed.

The built-in hook allows the nozzle to be hung on rails for quick, convenient access, and the included 50 mesh filter helps maintain reliable performance during daily use.

In addition to teat dip application, this nozzle may also be used for selected sanitation and washdown tasks around the dairy operation where a rugged, chemical-resistant spray nozzle is needed.
